RC CAT 745D Hydraulic Truck Model - 1/14 Scale Remote Control Toy!
Unleash your wanderlust with the Obsidian Nomad – a handcrafted journal designed to capture every breathtaking moment of your adventures. Its supple, full-grain leather cover feels incredible in your hands, promising years of treasured memories. Inside, you’ll find thick, creamy pages perfect for sketching, journaling, or simply jotting down those spontaneous epiphanies. The Obsidian Nomad isn’t just a journal; it’s a portal to your wildest dreams. Let your story unfold.
Note: The remote control, battery, and charger are not included, please contact customer service if you need it.

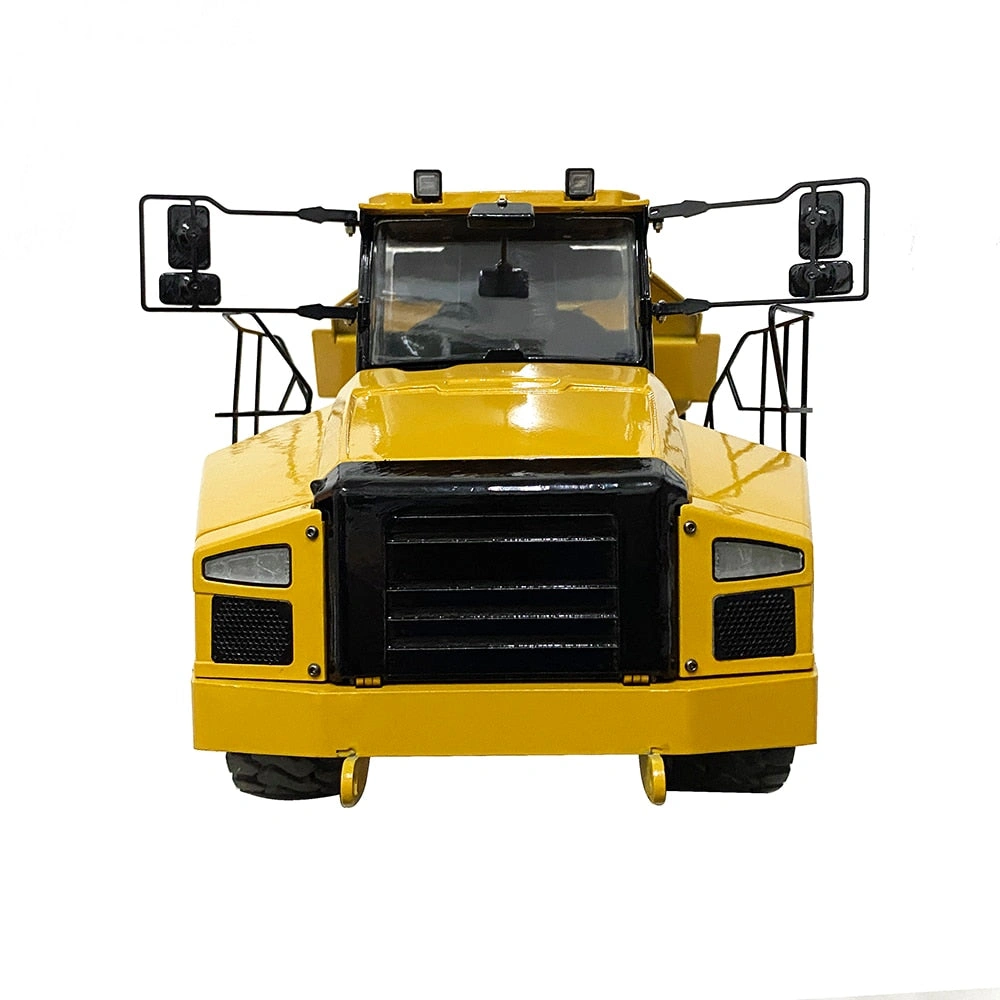

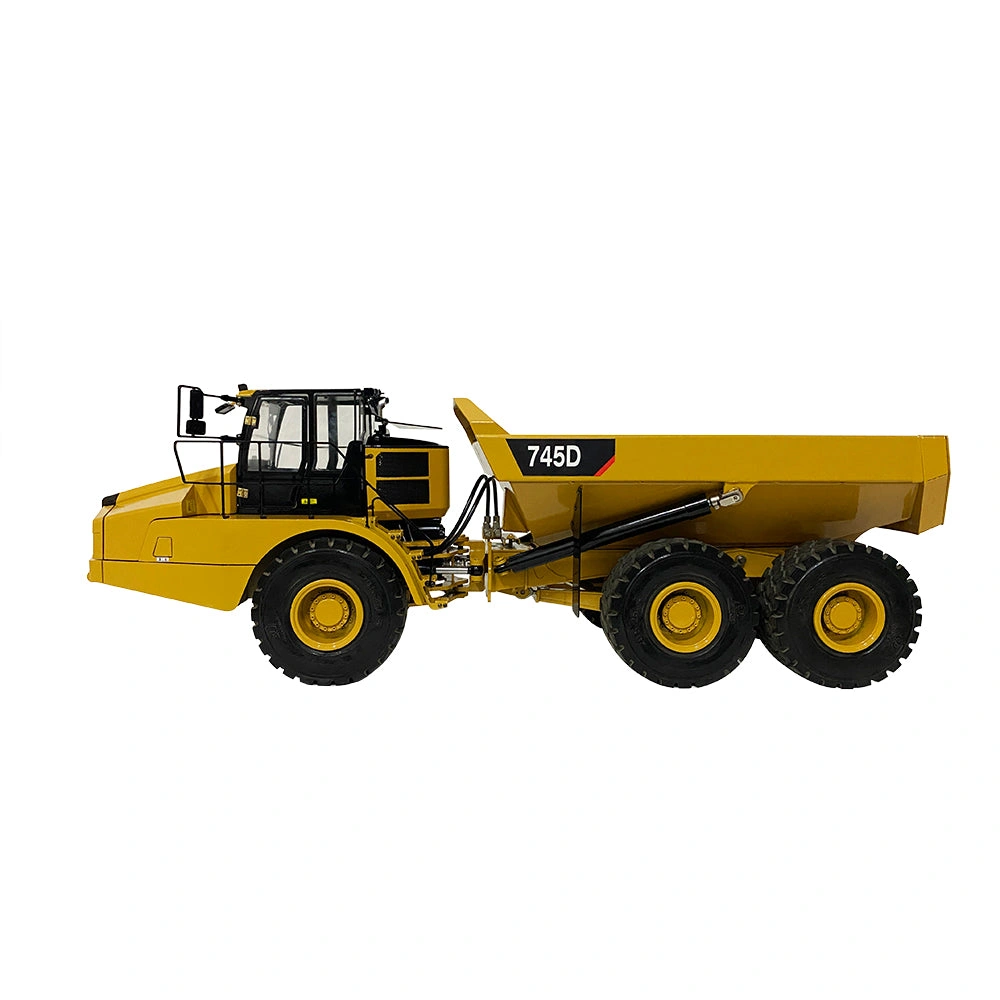

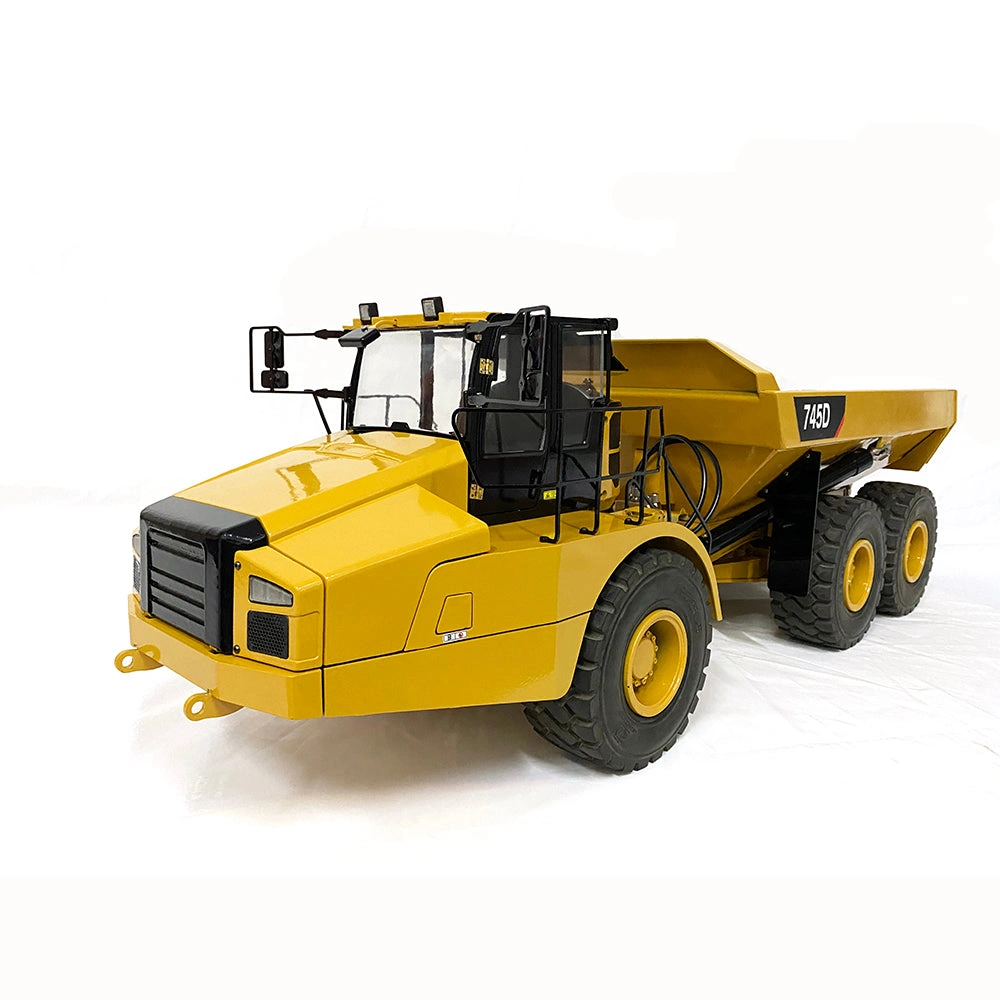

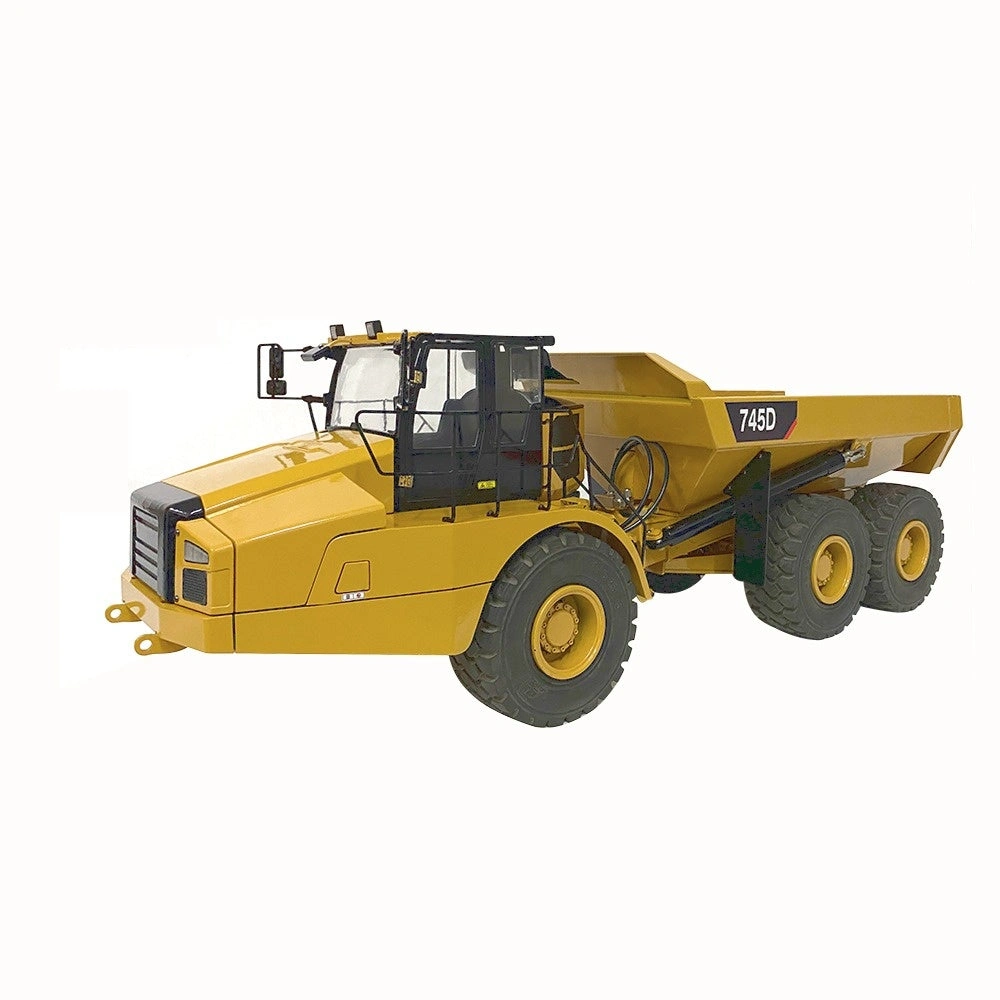

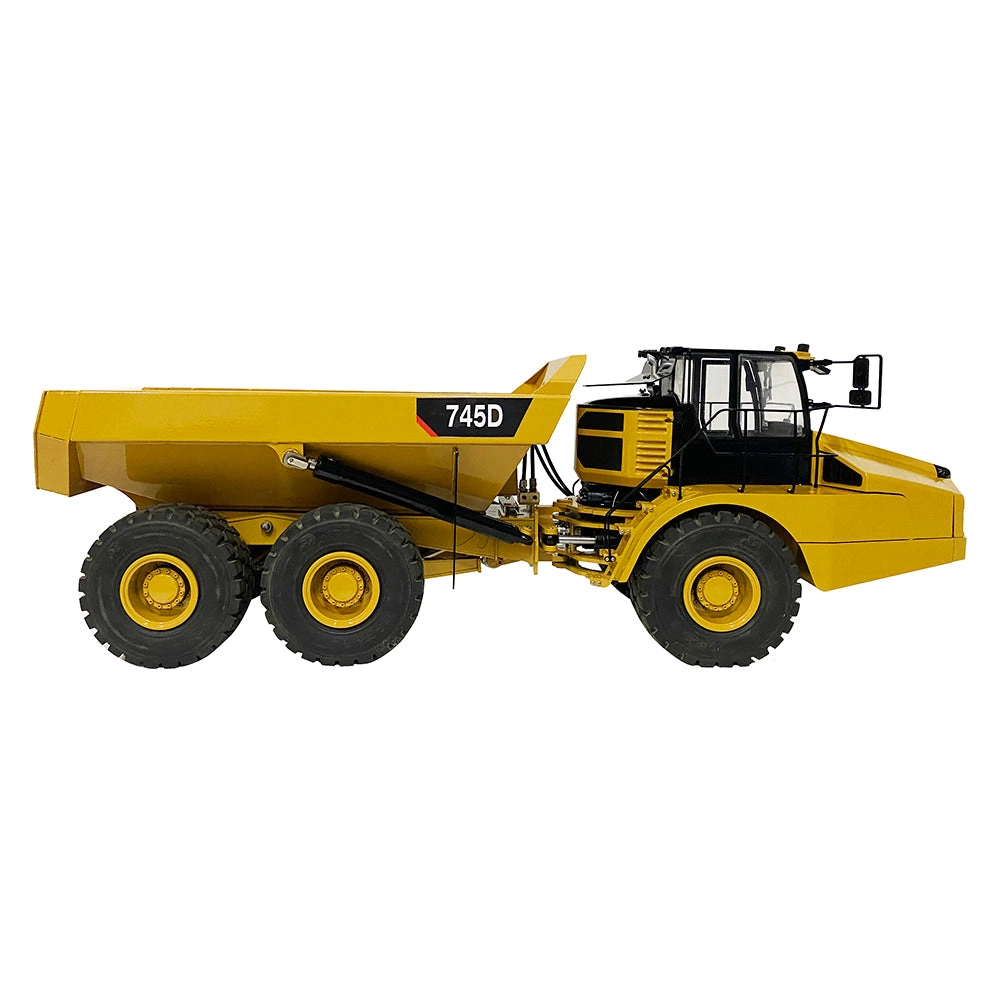

Carter 745D articulated truck model
product manual
Standard version: The whole car is equipped with electronic equipment and hydraulic system remote control, without battery, sound group, and interior decoration

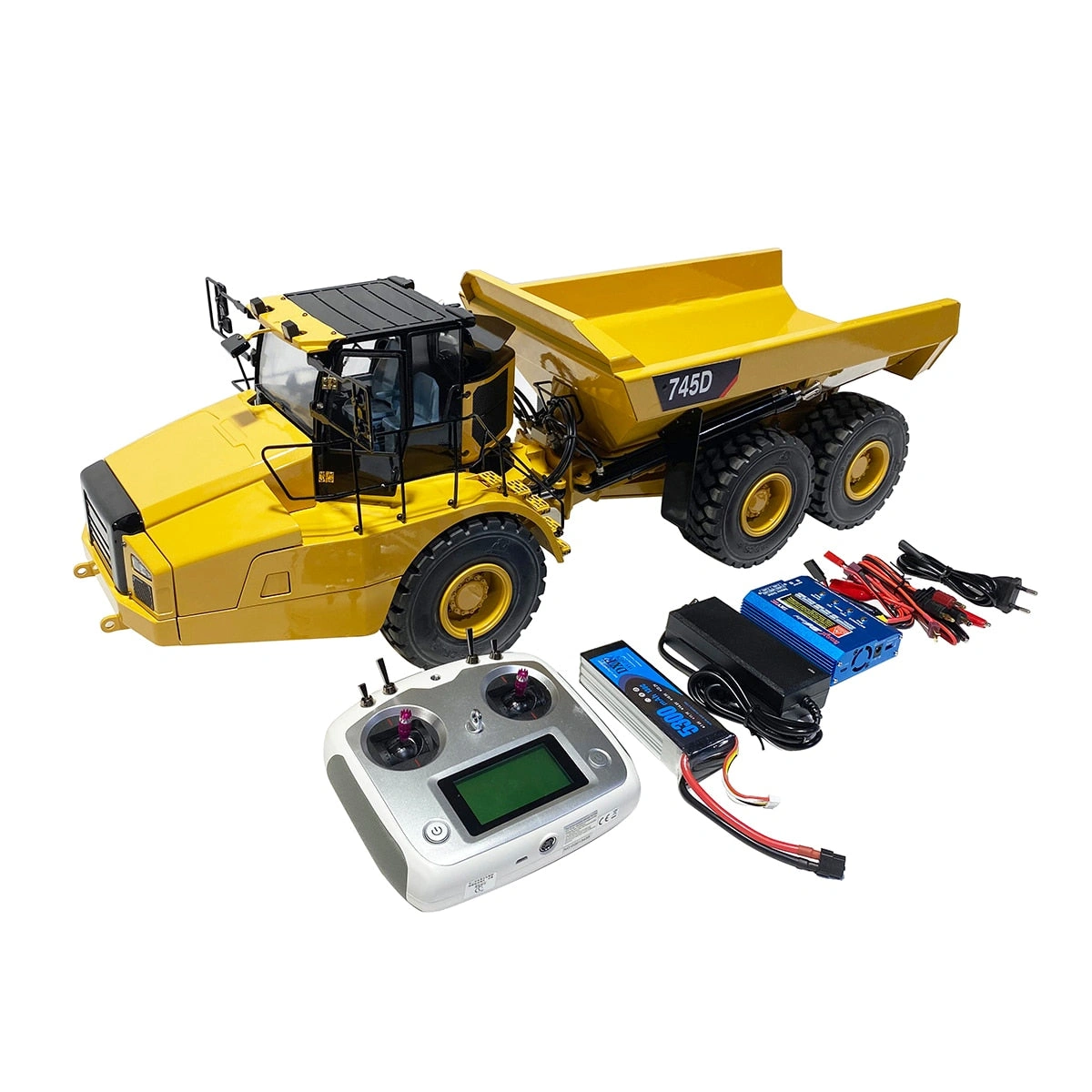

Upgraded version: The whole car is equipped with electronic equipment hydraulic system remote control, with battery charger, interior decoration
Product net weight: 21 kg
The whole vehicle and packaging: 27 kg
Material of main parts
Body: steel plate etc.
Walking: 137mm rubber tires
Hydraulic pump: 5055 or 5065 brushless motor + Italian pump head (factory 3.5mpa)
Hydraulic valve: two-way valve with neutral return
Hydraulic cylinder: stainless steel and brass
Body size: L838*W279*H284mm (transportation dimensions)
Width of the outer edge of the rearview mirror: 279MM
Maximum driving force 20KG
Theoretical maximum lifting force 20KG
Main performance parameters

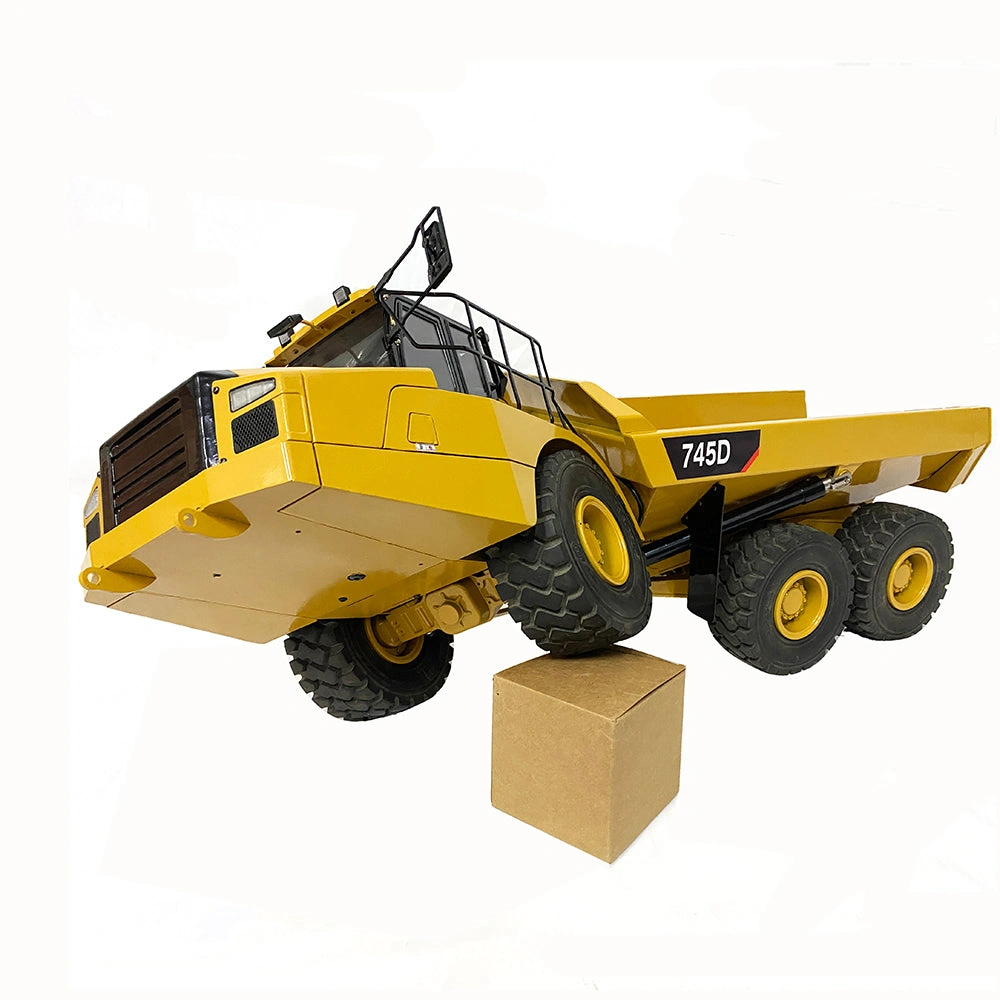

Steering form: articulated hydraulic steering
Minimum ground clearance of chassis 45 (mm)
Hydraulic pump: flow 1.2L/MIN, rated pressure 3.5MPA (the hydraulic system uses No. 46 hydraulic oil by default)
Reversing valve: 2-way center oil return reversing valve
Transmission system: brushed two-speed gearbox + metal lockless axle.
Walking ESC: 60A brushed ESC
Main pump ESC: 60A brushless ESC
Paint: using car paint
Remote control: FS-I6S, using 4 AA batteries, batteries need to be purchased separately
Host power supply voltage: 12V, using 3S lithium battery 5200MHA (length 140MM wide 45MM high 40MM size), XT60 connector.
