Heavy-Duty 1/14 RC Excavator – Realistic Metal Model, Removable Arms!
Unleash your inner adventurer with this extraordinary piece – a meticulously crafted treasure designed to ignite your imagination and elevate your everyday. It’s more than just an item; it’s a story waiting to unfold, a spark of joy ready to be ignited. Own a little bit of magic.
1/14 remote control 4 section arm 374F hydraulic excavator removable excavator model toys all-metal model upgraded arm excavator toy model
Model: 374F-UHD series
Model scale: 1:14
Model weight: about 26.5KG
About the function：
1. The angle of the digging arm can be adjusted manually, and the angle range is 18° (built-in reset pin)；
2. The digging arm supports the quick release function, which can be freely switched between 3 sections and 4 sections, which is more playable；
3. The cab supports the head-up function, and the maximum adjustment angle is 30° (the cab can stay at any position during the lifting process)；
About configuration：
The whole machine is equipped with 5-way reversing valve (with neutral oil return function), integrated oil pump, ultra-quiet 5055 brushless motor, whole machine lighting system, and semi-automatic quick-change connector.
bout the colors:
The color of the whole machine defaults to the original yellow, or gray and white.
Quick change connector can choose black, dark gray, and red three colors (color options are free)
（Color can be customized）
Notes on excavators:
When you receive the excavator, please replace the screw of the fuel tank filler with a vent screw and add 3-4 white sealing rings (this part is in the parts package,)
The pressure of the oil pump should be lower than 2.6MPA, and the throttle stroke of the oil pump should be lower than 60% as far as possible；
Rotary motors, drive wheels and other components are composed of multi-stage planets.
The torque is very large, it is recommended that the throttle travel be less than 70%,
In order to more effectively protect the gear set,
All the parts mentioned above must not be blocked, otherwise it will cause tooth sweeping or burn the motor；
Differences in purchase options:
374F-PL18 lite version: 4-section arm version, 5-way reversing valve (neutral oil return), 5055 brushless motor integrated pump, semi-automatic quick-change connector, quick-release connector for the whole machine excavating arm, bucket + hydraulic grab + Scarifier, 18-channel remote control (using 12-channel receiver) + sound group + lights.
374F-PL18 EV version: 4-section boom version, 5-way reversing valve (neutral oil return), 5055 brushless motor integrated pump, semi-automatic quick-change connector, quick-release joint for the excavating arm of the whole machine, bucket + hydraulic grab + Scarifier, 18 channel remote control + sound group + lighting.
The shipping list includes:
4-section arm 374F excavator + 5-way reversing valve + 5055 brushless motor integrated pump + semi-automatic quick-change joint + quick-release joint + bucket + hydraulic grab + ripper + Feitian PL18 remote control + sound group + light group + Cab interior.

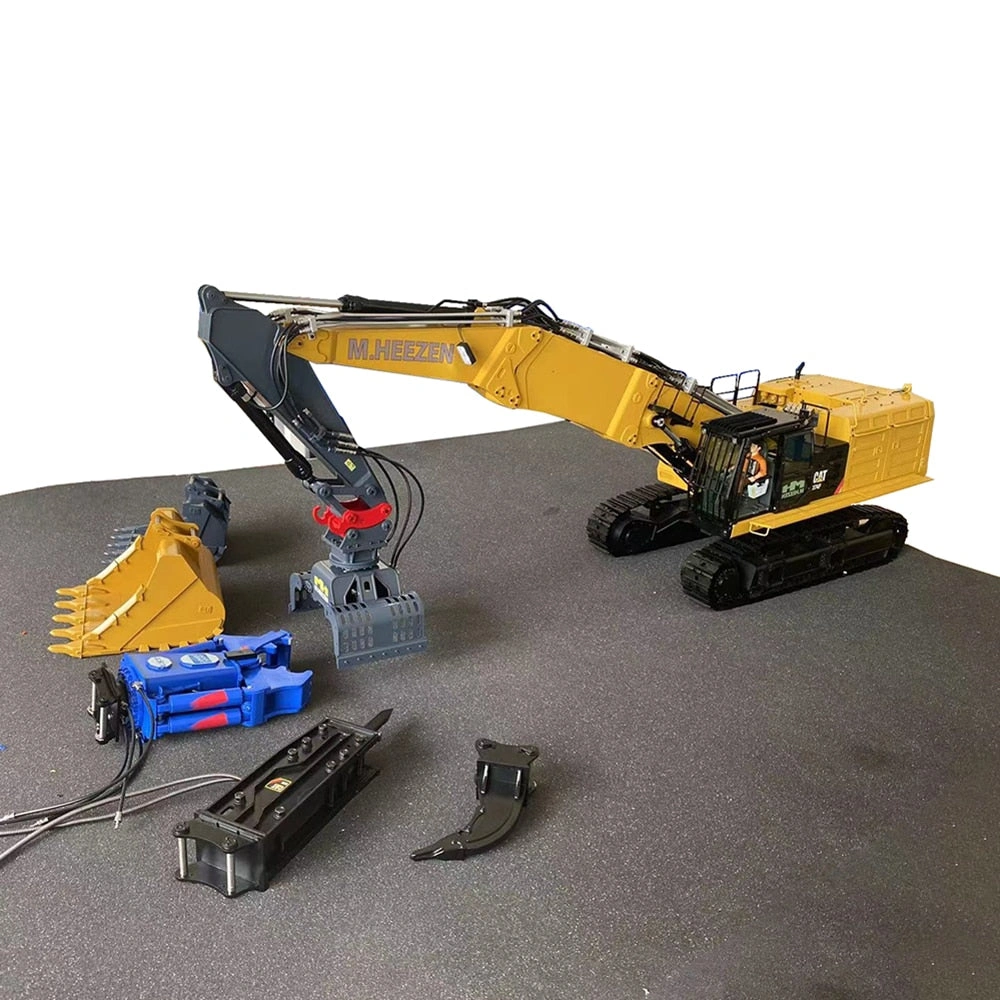

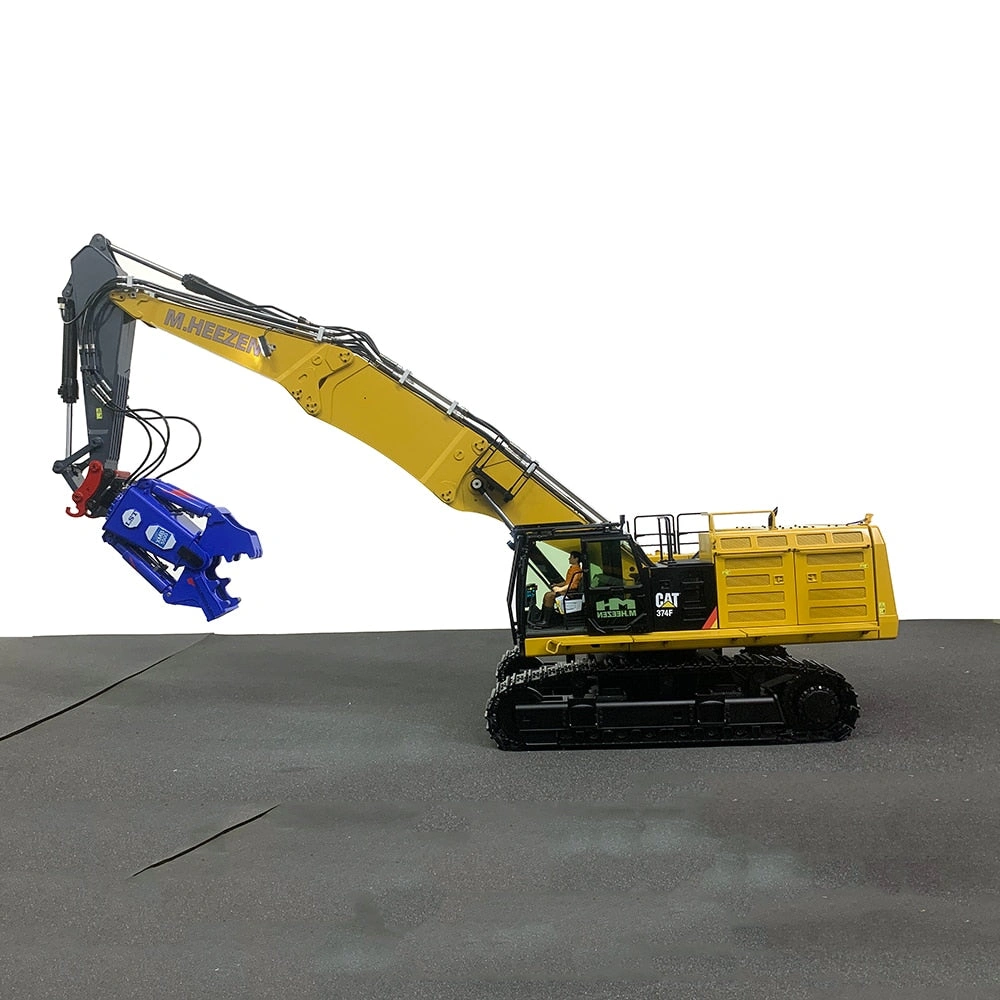

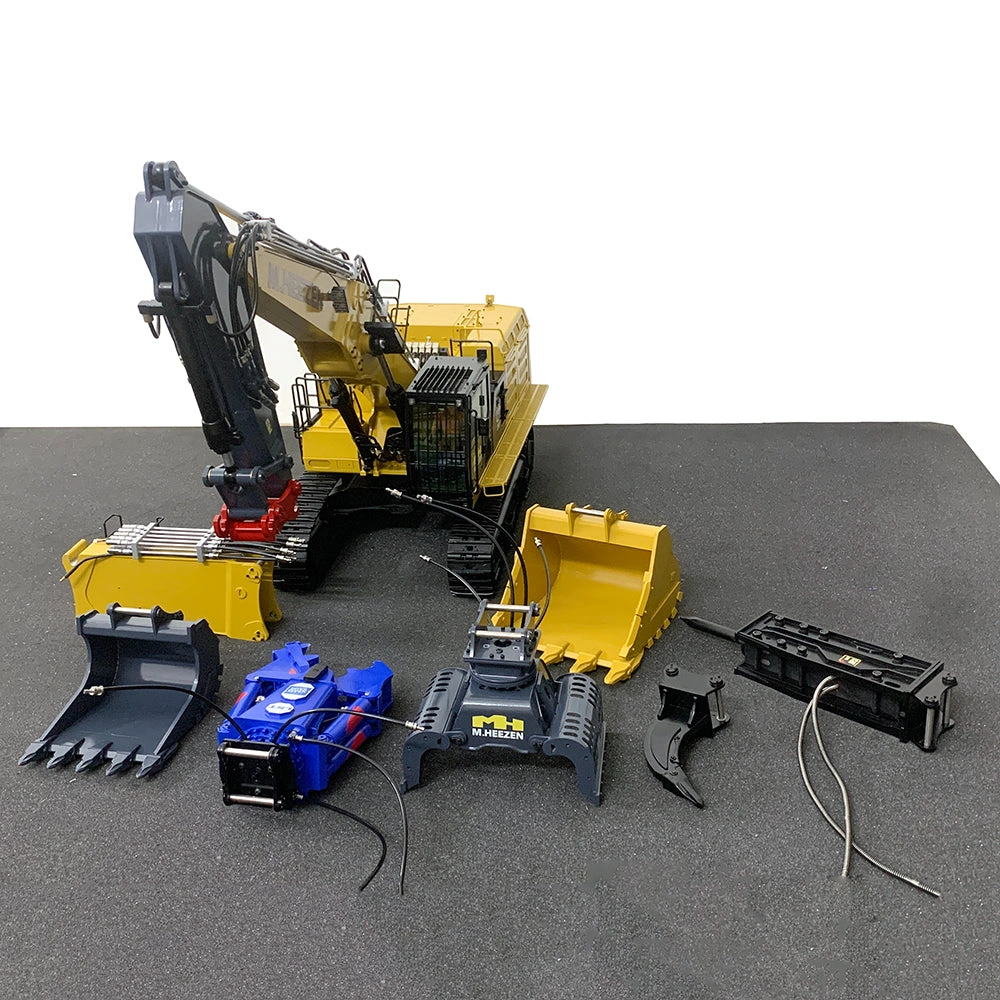

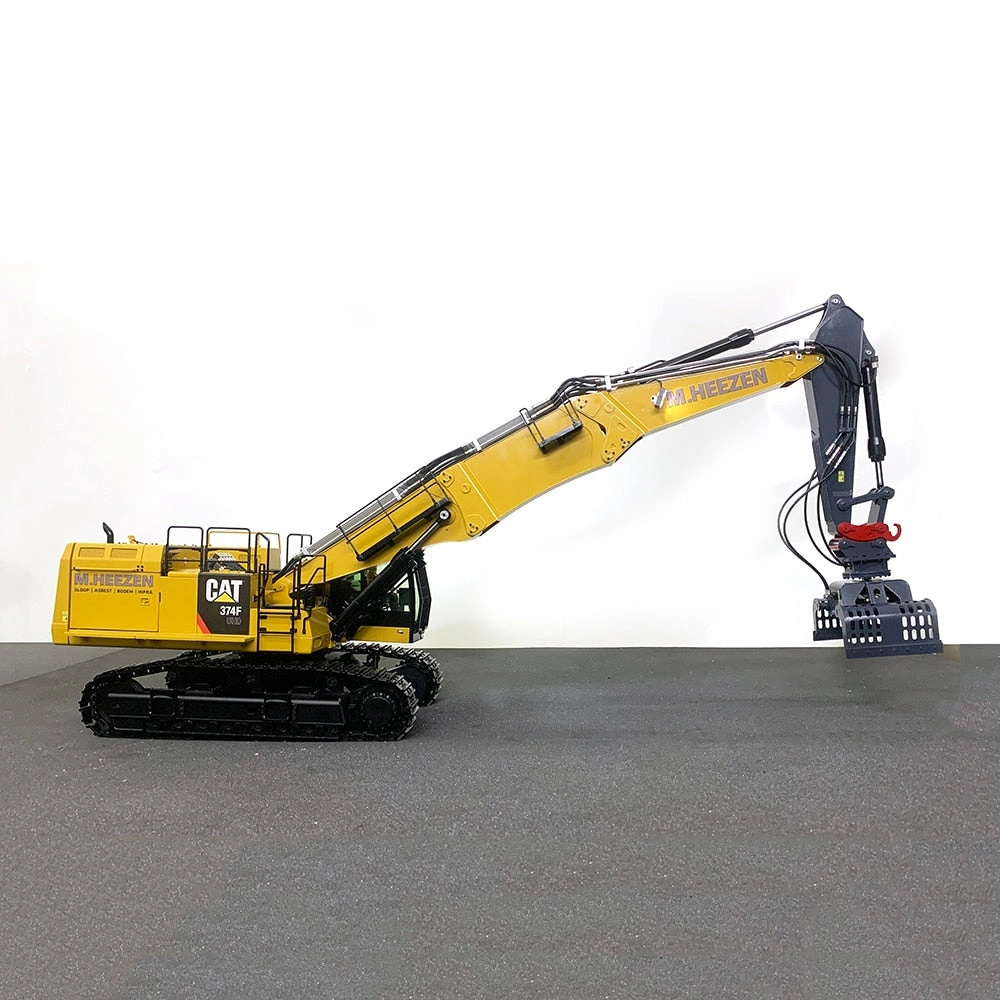

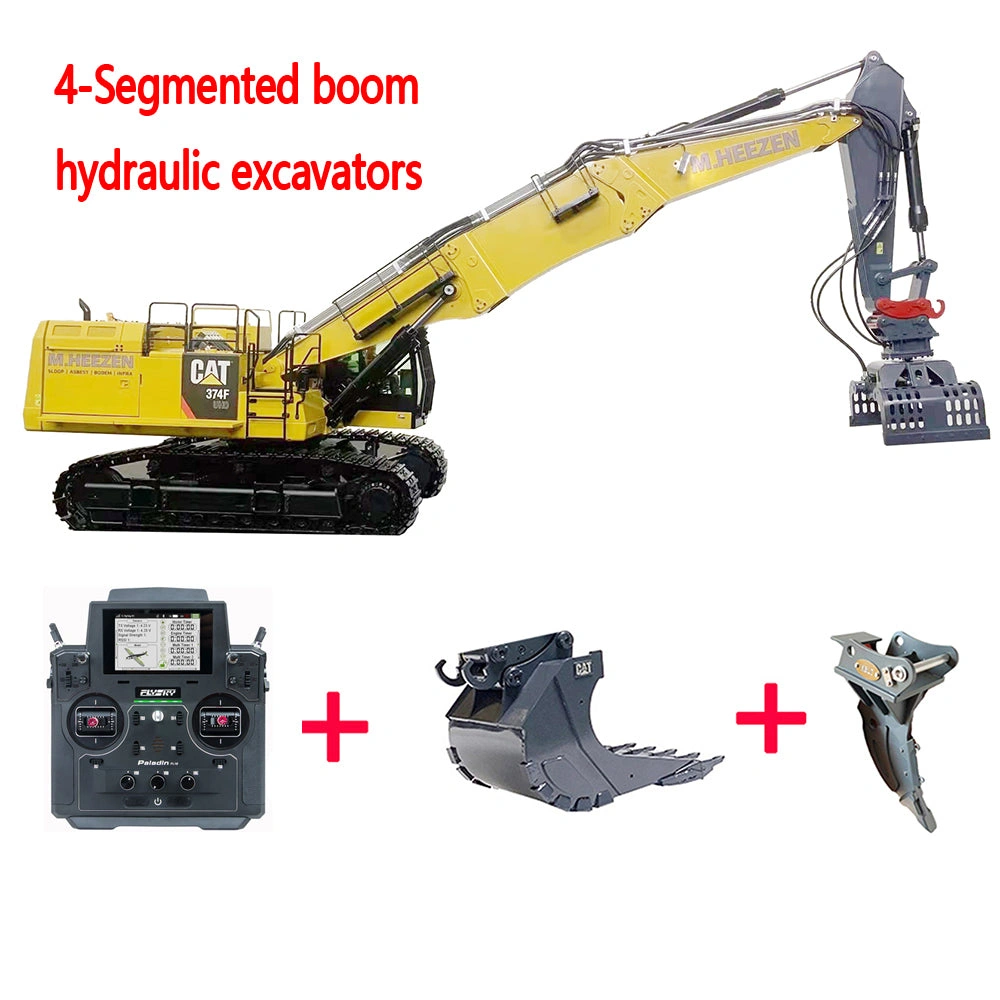

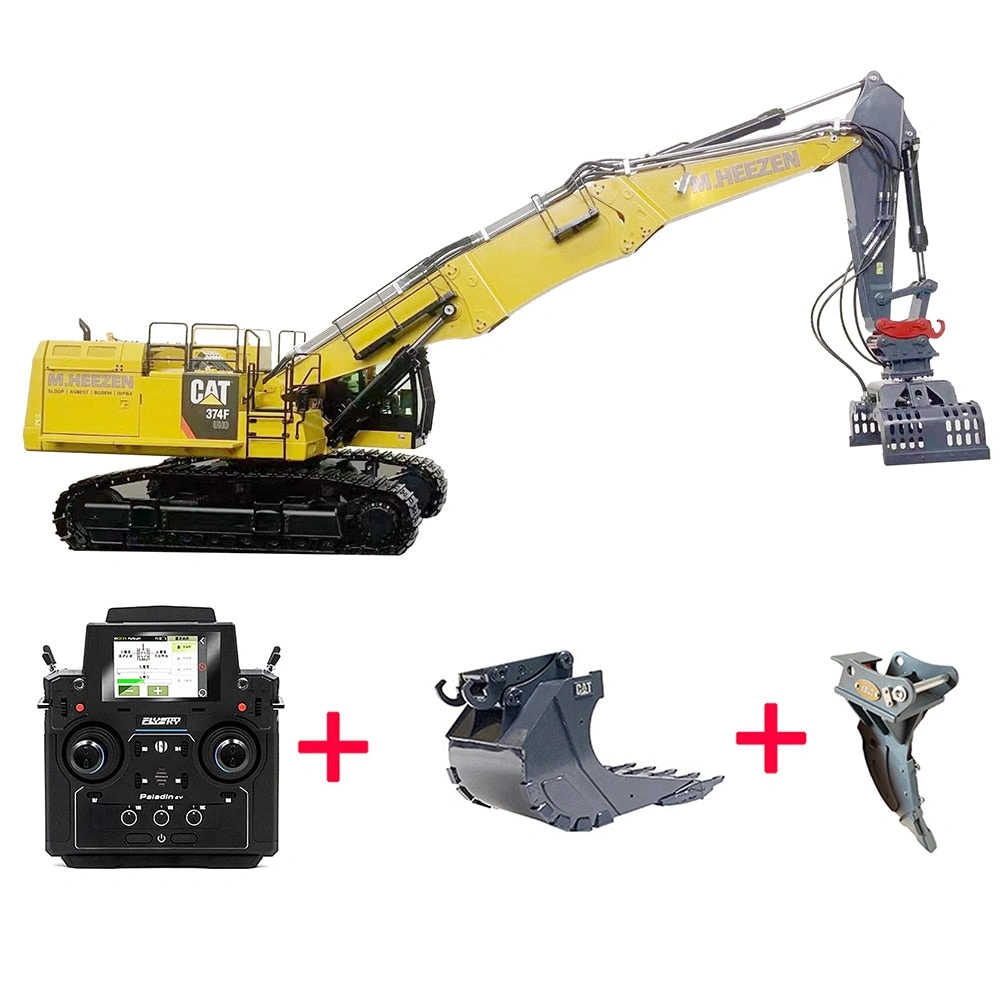

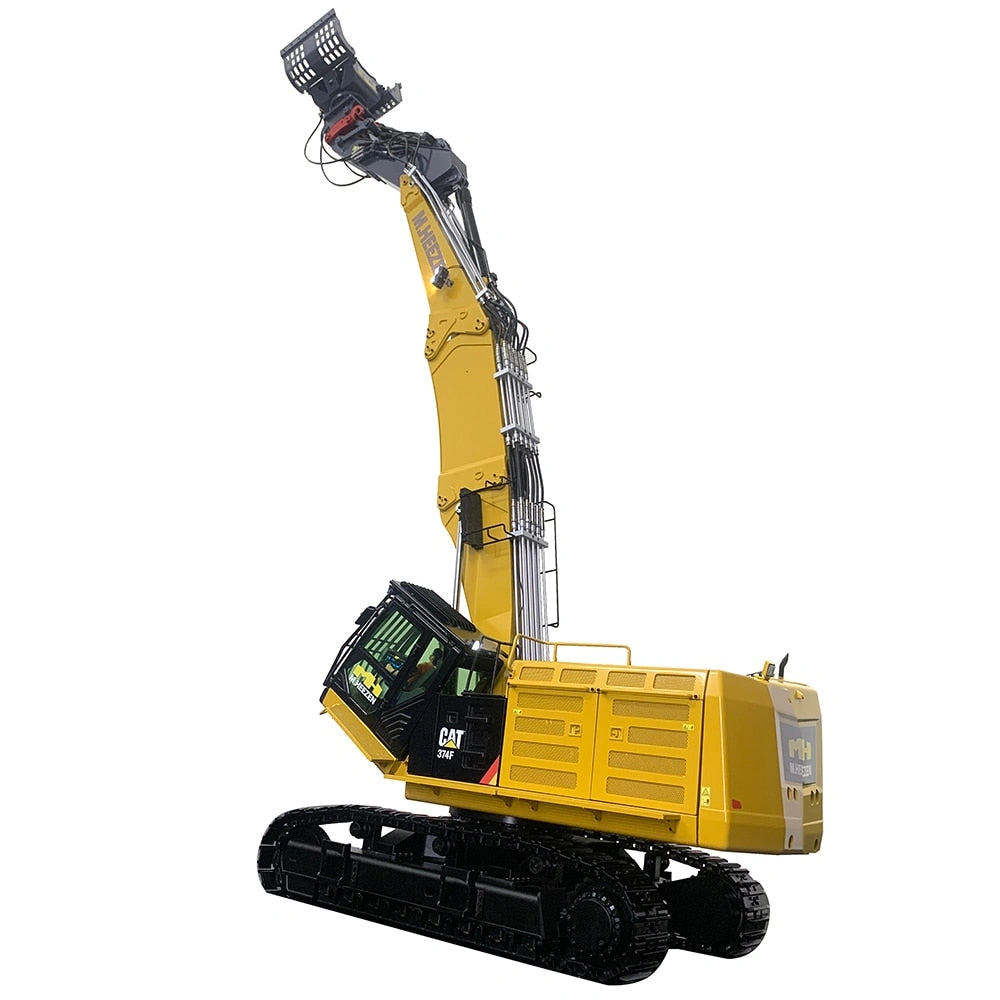

The following is the real shot of the product:
